Zhechi is a professional manufactures of Armored Cable Gland. Our professional expertise in manufacturing Armored Cable Gland has been honed over the past 10+ years. The Armored Cable Gland,supporting the locking cable connector, anti-wire loosening, internal locking fit the body of special design, loading and unloading only need no tools to plug, greatly reducing the installation time, clamping cable range, strong tensile strength, Acid and alkali, chemical resistance, the general solvent and other anti-corrosion properties, can be waterproof, dust proof. A full range of product sizes can be widely used in outlet holes in all areas.
Description of this Armored Cable Gland
The following is about Armored Cable Gland, I hope to help you better understand Armored Cable Gland.
The Armored Cable Gland,supporting the locking cable connector, anti-wire loosening, internal locking fit the body of special design, loading and unloading only need no tools to plug, greatly reducing the installation time, clamping cable range, strong tensile strength, Acid and alkali, chemical resistance, the general solvent and other anti-corrosion properties, can be waterproof, dust proof. A full range of product sizes can be widely used in outlet holes in all areas.
he above for Brass cable gland. If you want to know more about Nylon cable gland, cable gland, etc., you can contact us.
Parameter of this Armored Cable Gland
The following is about Armored Cable Gland, I hope to help you better understand Armored Cable Gland.
|
Armored Cable Gland |
|
|
Usage: |
The dangerous area of outdoor and indoor cable used in steel wire armored 1 zone and 2 zone. Double compression outer / inner cable sheath. Can detect the armored cable clamping seal joint. |
|
Certification: |
KOSHA IECEx (KOS IECEx 9.0018 x) KOSHA IECEx (KOS 9.0018 IECEx x) NEMKO ATEX (02ATEX) GOSTR (500X). |
|
Regulation: |
According to the British BS, in compliance with the IEC and CENELEC, suitable for use in zone 2, zone 1, suitable for use in gas group, IIA type, IIB and IIC. |
|
Protection: |
22 GD / IIC Exd / Exe 2 / tD A Ex 21 / IP66 / IP67, rubber sealing ring of the allowable temperature: 100 degrees C (explosion), 120 degrees C (Russian state registered trademark). |
|
Material: |
Nikel-plated Brass;Stainless Steel 304; Stainless Steel 316 |
|
Accessories: |
Fastening nuts, gaskets, labels, different diameter pore, dust cover, rubber gasket, serrated washers, stop plug, reducer, adaptor. |
|
Colour: |
Metalli |
|
Part No. |
Thread Specification |
Hole Size |
Wire Diameter (MM) |
Thread Length |
Spanner Sizes (MM) |
|
|
(MM) |
Inner（B-1） |
Outer（B） |
(MM) |
G&A |
||
|
KZ-M16-13 |
M16*1.5 |
16 |
8--12 |
8--16 |
16 |
22*27 |
|
KZ-M20-16 |
M20*1.5 |
20 |
8--12 |
8--16 |
16 |
27*27 |
|
KZ-M20-21 |
M20*1.5 |
20 |
10.5--15 |
11--21 |
16 |
27*32 |
|
KZ-M25-28 |
M25*1.5 |
25 |
12--21 |
10.5--26.5 |
16 |
30*36 |
|
KZ-M32-34 |
M32*1.5 |
32 |
19--28.5 |
18--34 |
16 |
36*45 |
|
KZ-M40-41 |
M40*1.5 |
40 |
22--28.5 |
22--41 |
16 |
45*58 |
|
KZ-M50-51 |
M50*1.5 |
50 |
24--44 |
32--51 |
16 |
54*68 |

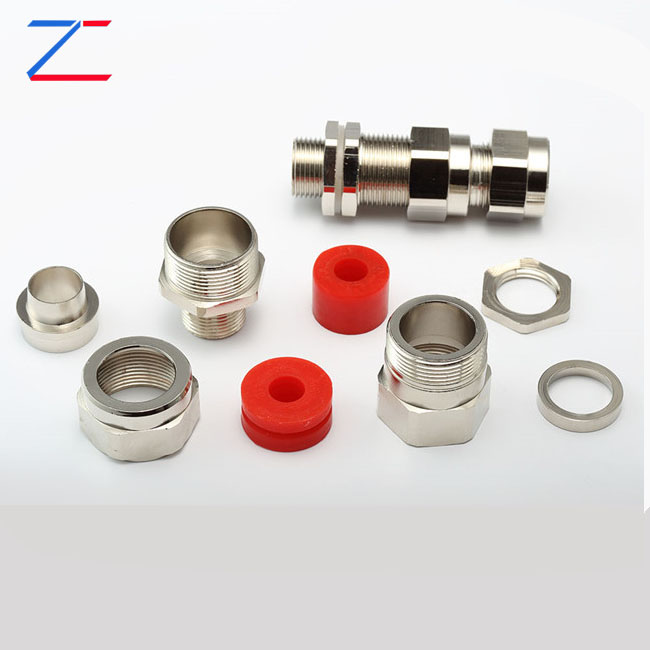

Image of this Armored Cable Gland
The following is about Armored Cable Gland, I hope to help you better understand Armored Cable Gland.
If you want to know Armored Cable Gland more related products, such as metal cable gland, and Stainless Steel Cable Gland… etc., you can contact us directly. We can provide you with more Stainless Steel Cable Gland, related information, or nylon cable gland, or brass cable gland… information sent to your e-mail.
Our Factory of this Armored Cable Gland
Our factory has more experience in production Armored Cable Gland，and we can provide multiple types related products, such as nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc. If you want to know more details about these, welcome to contact us!
Our Service of this Armored Cable Gland
We have standardization process in production brass cable gland, and ensuring our product’s quality.We have professional pre-sale team, they can answer your each questions, which are about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.We have hard-working after-sales team, who are providing after-sales service and protection for our clients.
FAQ of this Armored Cable Gland
If you have some problems about brass cable gland, or want to know more details about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.. welcome to contact us!
Looking forward to your inquiry for this Armored cable gland.
