Zhechi is a professional manufactures of Brass Cable Gland Metric series. Our professional expertise in manufacturing Brass Cable Gland Metric series has been honed over the past 10+ years. Brass Cable Gland Metric series is a gland of a wire and cable, which is also a suitable cable for connecting the cable and also protects the cable, so it does not escape. The brass cable glands are placed in different categories depending on whether the glands are used in the general processing industry or need to be protected against the risk of excessive temperature or explosion. Into the glands of the cable armor or armor-free layer and a different type of gland will be required for the variety.
Description of this Brass Cable Gland Metric series
The following is about Brass cable gland, I hope to help you better understand Brass cable gland.
The above for Brass Cable Gland Metric series. If you want to know more about Nylon cable gland, cable gland, etc., you can contact us.
Parameter of this Brass Cable Gland Metric series
The following is about Brass Cable Gland Metric series, I hope to help you better understand Brass cable gland.
|
Thread specifications: |
Metric Thread |
|
Product material: |
A C F parts are made of excellent environmental protection brass nickel-plated, D part of the gray nylon, B E part adopts the nitrile butadiene rubber (NBR) |
|
Product certification: |
European CE certificate,European environmental ROHS, REACH certificate,The United States UL certification, and explosion-proof certification of the EX. |
|
Fire rating: |
Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68. |
|
Protection Level : |
Part D UL94V - 2, low smoke zero halogen. |
|
Color type: |
A, C, F is metal color. D to gray,B ,Eto black. |
|
Working temperature: |
Static:- 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃. Dynamic:- 20 ℃- 80℃, short time of up to 100 ℃. |
|
Product features |
Special clamping claw, and the design of the clamping ring is concave and convex clasped with forced tight head assembly time-savers, cable clamping range is big, strong tensile resistance, can waterproof, dustproof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent. |
|
系列 |
规格 |
电缆范围 |
螺纹长度 |
本体高度 |
扳手直径 |
螺纹外径 |
开孔尺寸 |
包装Packing |
|
Series |
Thread |
∮ |
GL |
H |
A＆F |
AG |
Panel Mounting Hole |
只/包 |
|
mm |
mm |
mm |
mm |
mm |
mm |
Pcs/Bag |
||
|
Brass Cable Gland M series |
M10x1 |
3-6.5 |
8 |
22 |
15 |
10 |
10-10.3 |
100 |
|
M10x1 |
2-5 |
8 |
22 |
15 |
10 |
10-10.3 |
100 |
|
|
M12x1.5 |
3-6.5 |
8 |
22 |
16 |
12 |
12-12.3 |
100 |
|
|
M12x1.5 |
2-5 |
8 |
22 |
16 |
12 |
12-12.3 |
100 |
|
|
M14x1.5 |
4-8 |
8 |
26 |
19 |
14 |
14-14.3 |
100 |
|
|
M14x1.5 |
2-6 |
8 |
26 |
19 |
14 |
14-14.3 |
100 |
|
|
M16x1.5 |
4-8 |
8 |
26 |
19 |
16 |
16-16.3 |
100 |
|
|
M16x1.5 |
2-6 |
8 |
26 |
19 |
16 |
16-16.3 |
100 |
|
|
M16x1.5 |
5-10 |
8 |
27 |
22 |
16 |
16-16.3 |
100 |
|
|
M16x1.5 |
3-7 |
8 |
27 |
22 |
16 |
16-16.3 |
100 |
|
|
M18x1.5 |
5-10 |
8 |
27 |
22 |
18 |
18-18.3 |
100 |
|
|
M18x1.5 |
3-7 |
8 |
27 |
22 |
18 |
18-18.3 |
100 |
|
|
M20x1.5 |
6-12 |
9 |
28 |
24 |
20 |
20-20.3 |
100 |
|
|
M20x1.5 |
5-9 |
9 |
28 |
24 |
20 |
20-20.3 |
100 |
|
|
M20x1.5 |
10-14 |
10 |
30 |
27 |
20 |
20-20.3 |
100 |
|
|
M20x1.5 |
7-12 |
10 |
30 |
27 |
20 |
20-20.3 |
100 |
|
|
M22x1.5 |
10-14 |
10 |
30 |
27 |
22 |
22-22.3 |
100 |
|
|
M22x1.5 |
7-12 |
10 |
30 |
27 |
22 |
22-22.3 |
100 |
|
|
M24x1.5 |
12-15 |
10 |
30 |
27 |
24 |
24-24.3 |
100 |
|
|
M24x1.5 |
10-12 |
10 |
30 |
27 |
24 |
24-24.3 |
100 |
|
|
M25x1.5 |
13-18 |
10 |
35 |
33 |
25 |
25-25.3 |
100 |
|
|
M25x1.5 |
9-16 |
10 |
35 |
33 |
25 |
25-25.3 |
100 |
|
|
M27x1.5 |
13-18 |
10 |
35 |
33 |
27 |
27-27.3 |
100 |
|
|
M27x1.5 |
9-16 |
10 |
35 |
33 |
27 |
27-27.3 |
100 |
|
|
M30x1.5 |
16-21 |
11 |
34 |
35/36 |
30 |
30-30.3 |
50 |
|
|
M30x1.5 |
7-15 |
11 |
34 |
35/36 |
30 |
30-30.3 |
50 |
|
|
M32x1.5 |
16-21 |
11 |
34 |
36/37 |
32 |
32-32.3 |
50 |
|
|
M32x1.5 |
7-15 |
11 |
34 |
36/37 |
32 |
32-32.3 |
50 |
|
|
M32x1.5 |
18-25 |
12 |
40 |
41/42 |
32 |
32-32.3 |
50 |
|
|
M32x1.5 |
13-20 |
12 |
40 |
41/42 |
32 |
32-32.3 |
50 |
|
|
M36x1.5 |
18-25 |
12 |
40 |
41/42 |
36 |
36-36.3 |
20 |
|
|
M36x1.5 |
13-20 |
12 |
40 |
41/42 |
36 |
36-36.3 |
20 |
|
|
M40x1.5 |
22-32 |
14 |
48 |
52/53 |
40 |
40-40.3 |
20 |
|
|
M40x1.5 |
20-26 |
14 |
48 |
52/53 |
40 |
40-40.3 |
20 |
|
|
M50x1.5 |
32-38 |
14 |
49 |
60/61 |
50 |
50-50.3 |
20 |
|
|
M50x1.5 |
25-31 |
14 |
49 |
60/61 |
50 |
50-50.3 |
20 |
|
|
M63x1.5 |
37-44 |
14 |
50 |
67 |
63 |
63-63.3 |
20 |
|
|
M63x1.5 |
29-35 |
14 |
50 |
67 |
63 |
63-63.3 |
20 |
|
|
M75x2 |
53-60 |
25 |
63 |
82 |
75 |
75-75.3 |
4 |
|
|
M75x2 |
48-55 |
25 |
63 |
82 |
75 |
75-75.3 |
4 |

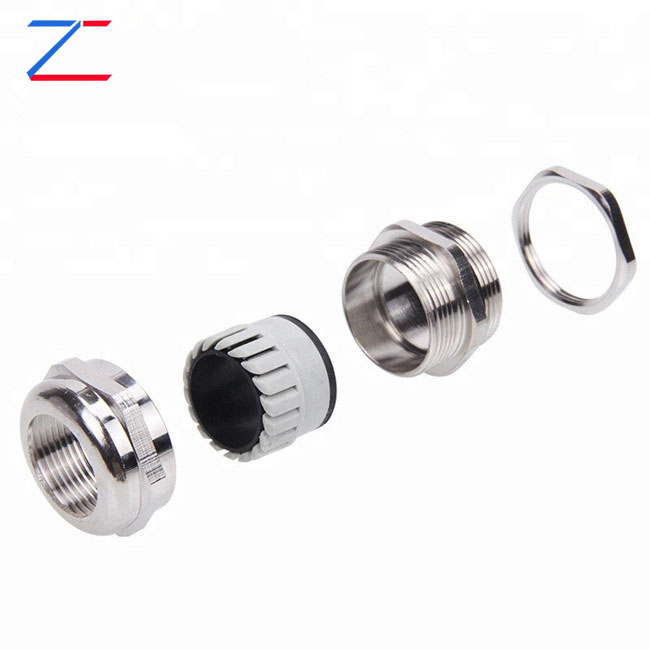

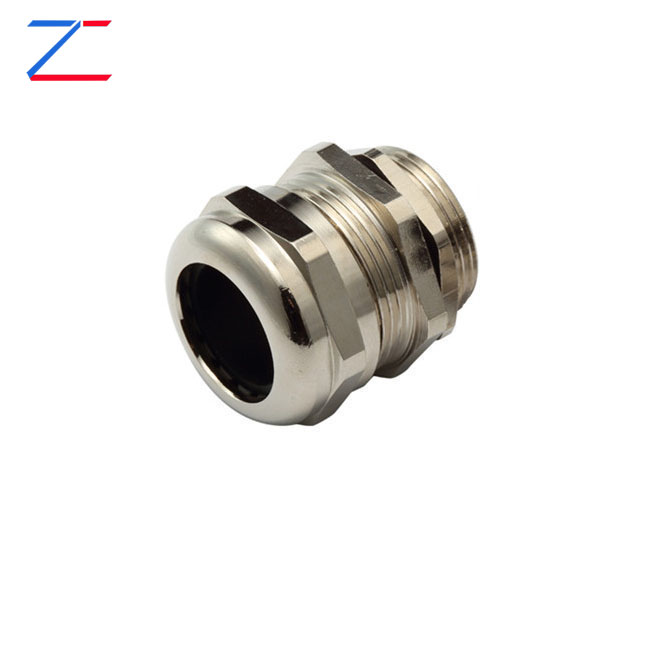

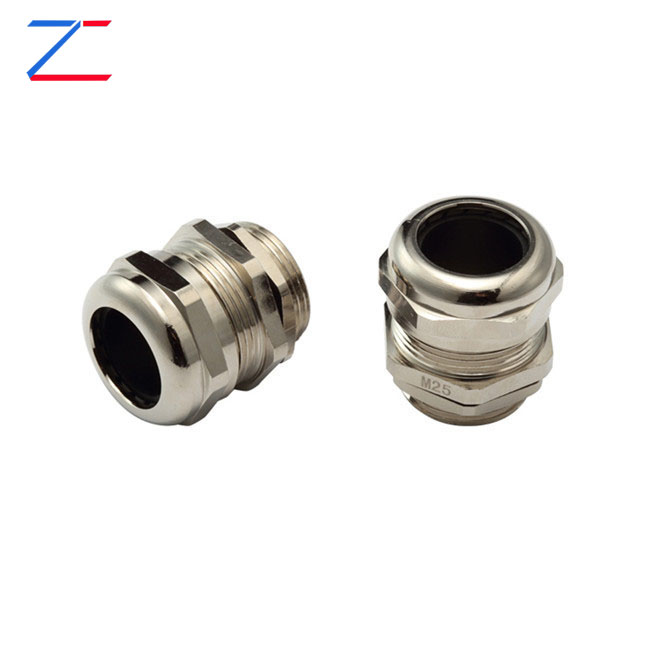

Image of this Brass Cable Gland Metric series
The following is about Brass Cable Gland Metric series, I hope to help you better understand brass cable gland.
If you want to know Brass Cable Gland Metric series more related products, such as nylon cable gland, and Stainless Steel Cable Gland… etc., you can contact us directly. We can provide you with more Stainless Steel Cable Gland, related information, or nylon cable gland, or brass cable gland… information sent to your e-mail.
Our Factory of this Brass Cable Gland Metric series
Our factory has more experience in production brass Cable Gland Metric series，and we can provide multiple types related products, such as nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc. If you want to know more details about these, welcome to contact us!
Our Service of this Brass Cable Gland Metric series
We have standardization process in production Brass Cable Gland Metric series, and ensuring our product’s quality.We have professional pre-sale team, they can answer your each questions, which are about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.We have hard-working after-sales team, who are providing after-sales service and protection for our clients.
FAQ of this Brass Cable Gland Metric series
If you have some problems about Brass Cable Gland Metric series, or want to know more details about nylon cable ties,Stainless Steel cable gland,Stainless Steel cable ties,Cable Clips,Insulated Terminal,etc.. welcome to contact us!
Looking forward to your inquiry for this Brass Cable Gland Metric series.
