Zhechi is a professional manufactures of Heat-resistant cable gland. Our professional expertise in manufacturing Heat-resistant cable gland has been honed over the past 10+ years. Heat-resistant cable gland is a gland of a wire and cable, which is also a suitable cable for connecting the cable and also protects the cable, so it does not escape. The cable glands are placed in different categories depending on whether the glands are used in the general processing industry or need to be protected against the risk of excessive temperature or explosion. Into the glands of the cable armor or armor-free layer and a different type of gland will be required for the variety.
Description of this Heat-resistant cable gland
The following is about Heat-resistant cable gland, I hope to help you better understand Heat-resistant cable gland.
The Heat-resistant cable gland,supporting the locking cable connector, anti-wire loosening, internal locking fit the body of special design, loading and unloading only need no tools to plug, greatly reducing the installation time, clamping cable range, strong tensile strength, Acid and alkali, chemical resistance, the general solvent and other anti-corrosion properties, can be waterproof, dustproof. A full range of product sizes can be widely used in outlet holes in all areas.
he above for Heat-resistant cable gland. If you want to know more about Nylon cable gland, Metal cable gland, etc., you can contact us.
Parameter of this Heat-resistant cable gland
The following is about Heat-resistant cable gland, I hope to help you better understand Heat-resistant cable gland
|
Thread specifications: |
Metric thread, PG thread, G(PF) thread and NPT thread . |
|
Product features: |
Special clamping claws and clamping ring design, clamping cable range, high tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents. |
|
Protection Level : |
Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68-5 bar. |
|
Working temperature: |
- 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃. |
|
Material: |
A, C, F parts made from copper alloy plating nickel, with UL E part made of nylon PA66 (fire rating UL 94 v - 2). B and D part adopts EPDM weather resistance rubber. |
|
Color: |
Metallic |
|
Thread Size |
Cable diameter
∮mm
|
Thread diameter
C1 mm
|
Spanner diameter
C2 mm
|
Pakaging
A＆F mm
|
Pakaging
(for reference)
pcs
|
|
|
M |
M6 X 1 |
1.6~3 |
6 |
5 |
10 / 10 |
20 |
|
2.3 ~3.7 |
6 |
5 |
10 / 10 |
20 |
||
|
M8*1.25 |
0.8~ 2 |
8 |
6 |
11 / 11 |
20 |
|
|
2 ~4 |
8 |
6 |
11 / 11 |
20 |
||
|
3.5 ~6.5 |
8 |
7 |
11 / 14 |
20 |
||
|
M10*1.5 |
3.5 ~ 6.5 |
10 |
7 |
13 / 13 |
20 |
|
|
M12 X 1.5 |
3 ~ 5.3 |
12 |
8 |
17 / 17 |
20 |
|
|
5 ~ 7 |
12 |
7 |
17 / 17 |
20 |
||
|
5 ~ 8 |
12 |
8 |
17 / 17 |
20 |
||
|
4.5 ~ 8 |
12 |
8 |
14 / 14 |
20 |
||
|
M16 X 1.5 |
4 ~ 7 |
16 |
9 |
22 / 22 |
10 |
|
|
4.5 ~ 8 |
16 |
9 |
18 / 18 |
10 |
||
|
5~ 8 |
16 |
9 |
22 / 22 |
10 |
||
|
6 ~ 10 |
16 |
9 |
22 / 22 |
10 |
||
|
M20 X 1.5 |
5~ 9 |
20 |
10 |
24 / 24 |
10 |
|
|
7 ~ 11.5 |
20 |
10 |
26 / 26 |
10 |
||
|
7 ~ 12 |
20 |
10 |
24 / 24 |
10 |
||
|
9~ 14 |
20 |
10 |
26 / 26 |
10 |
||
|
M25 X 1.5 |
12 ~ 16 |
25 |
12 |
32 / 32 |
10 |
|
|
14 ~ 18 |
25 |
12 |
32 / 32 |
10 |
||
|
M32 X 1.5 |
16 ~22 |
32 |
13 |
41 / 41 |
10 |
|
|
18 ~ 25 |
32 |
13 |
41 / 41 |
10 |
||
|
M40 X 1.5 |
21 ~ 25 |
40 |
15 |
50 / 50 |
5 |
|
|
24 ~ 30 |
40 |
15 |
50 / 50 |
5 |
||
|
M50 X 1.5 |
26 ~ 32.6 |
50 |
15 |
60 / 60 |
2 |
|
|
31 ~ 41 |
50 |
15 |
60 / 60 |
2 |
||
|
M63 X 1.5 |
40 ~ 46 |
63 |
15 |
73 / 73 |
2 |
|
|
44 ~ 51 |
63 |
15 |
73 / 73 |
2 |
||
|
M75 X 2 |
50~ 56 |
75 |
15 |
85 / 88 |
1 |
|
|
56 ~ 66 |
75 |
15 |
85 / 88 |
1 |
||
|
M90 X 2 |
58 ~ 68 |
90 |
20 |
102/106 |
1 |
|
|
66 ~ 77 |
90 |
20 |
102/106 |
1 |
||
|
M100 X 1.5 |
58 ~ 68 |
100 |
25 |
116/120 |
1 |
|
|
66 ~ 77 |
100 |
25 |
116/120 |
1 |
||
|
PG |
PG 7 |
3 ~ 5.3 |
12.5 |
8 |
17 / 17 |
20 |
|
4.5 ~ 7.8 |
12.5 |
8 |
17 / 17 |
20 |
||
|
3~ 6 |
12.5 |
8 |
14 / 14 |
20 |
||
|
PG 9 |
3 ~ 5.3 |
15.2 |
8 |
18 / 17 |
20 |
|
|
4.5 ~7.8 |
15.2 |
8 |
18 / 17 |
20 |
||
|
PG 11 |
4 ~7 |
18.6 |
9 |
22 / 22 |
10 |
|
|
6~ 10 |
18.6 |
9 |
22 / 22 |
10 |
||
|
PG 13.5 |
4 ~ 9 |
20.4 |
10 |
24 / 24 |
10 |
|
|
7 ~ 12 |
20.4 |
10 |
24 / 24 |
10 |
||
|
PG 16 |
7 ~ 11 |
22.5 |
10 |
26 / 26 |
10 |
|
|
9 ~ 14 |
22.5 |
10 |
26 / 26 |
10 |
||
|
PG 21 |
12 ~ 16 |
28.3 |
12 |
32 / 32 |
10 |
|
|
14 ~ 18 |
28.3 |
11 |
32 / 32 |
10 |
||
|
PG 29 |
16 ~ 22 |
37 |
12.5 |
41 / 41 |
10 |
|
|
18 ~ 25 |
37 |
12 |
41 / 41 |
10 |
||
|
PG 36 |
21 ~ 25 |
47 |
15 |
50 / 50 |
5 |
|
|
24 ~30 |
47 |
15 |
50 / 50 |
5 |
||
|
G (PF) |
G(PF) 1/4 |
3 ~ 5.3 |
13.15 |
8 |
17 / 17 |
10 |
|
4 ~ 8 |
13.15 |
8 |
17 / 17 |
10 |
||
|
G(PF) 3/8 |
4 ~ 7 |
16.66 |
9 |
22 / 22 |
10 |
|
|
6 ~ 10 |
16.66 |
9 |
22 / 22 |
10 |
||
|
G(PF) 1/2 |
7 ~ 12 |
20.95 |
10 |
26 / 26 |
10 |
|
|
9 ~ 14 |
20.95 |
10 |
26 / 26 |
10 |
||
|
G(PF) 3/4 |
12 ~ 16 |
26.44 |
12 |
32 / 32 |
10 |
|
|
14 ~ 18 |
26.44 |
12 |
32 / 32 |
10 |
||
|
G(PF) 1 |
16 ~ 22 |
33.25 |
12.5 |
41 / 41 |
10 |
|
|
18 ~ 25 |
33.25 |
13 |
41 / 41 |
10 |
||
|
G(PF) 1 1/4 |
21~ 25 |
41.91 |
15 |
50 / 50 |
5 |
|
|
24 ~ 30 |
41.91 |
15 |
50 / 50 |
5 |
||
|
G(PF) 1 1/2 |
26 ~ 32 |
47.8 |
15 |
60 / 60 |
2 |
|
|
21 ~31 |
47.8 |
15 |
60 / 60 |
2 |
||
|
G(PF) 2 |
40 ~ 46 |
59.61 |
15 |
73 / 73 |
2 |
|
|
44 ~ 51 |
59.61 |
15 |
73 / 73 |
2 |
||
|
G(PF) 2 1/2 |
50 ~ 56 |
75.18 |
18 |
85 / 88 |
1 |
|
|
56 ~ 66 |
75.18 |
18 |
85 / 88 |
1 |
||
|
NPT |
NPT 3/8 |
4 ~ 7 |
17.05 |
13 |
22 |
10 |
|
6 ~ 10 |
17.05 |
13 |
22 |
10 |
||
|
NPT 1/2 |
7 ~ 11 |
21.22 |
13 |
26 |
10 |
|
|
9 ~ 14 |
21.22 |
13 |
26 |
10 |
||
|
NPT 3/4 |
12 ~ 16 |
26.56 |
14 |
32 |
10 |
|
|
14 ~ 18 |
26.56 |
14 |
32 |
10 |
||
|
NPT 1 |
16 ~ 22 |
33.22 |
15 |
41 |
10 |
|
|
18~ 25 |
33.22 |
15 |
41 |
10 |
||
|
NPT 1 1/4 |
21 ~ 25 |
41.98 |
15 |
50 |
5 |
|
|
24~ 30 |
41.98 |
15 |
50 |
5 |
||

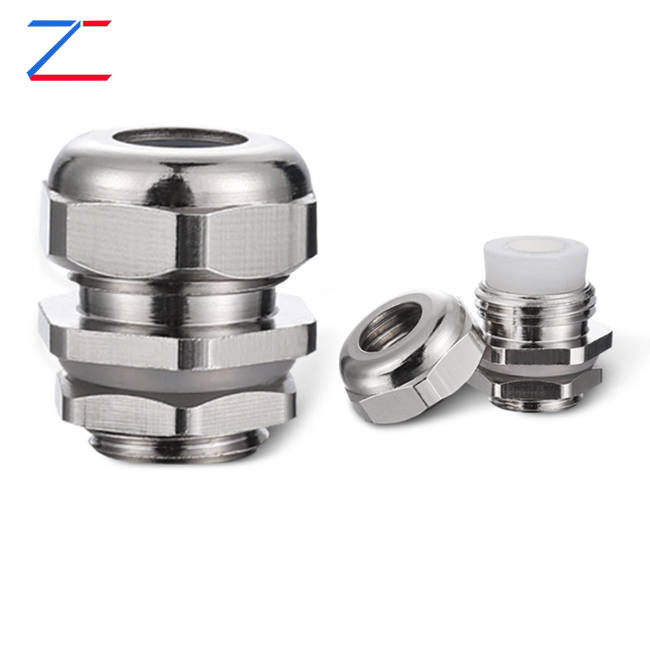

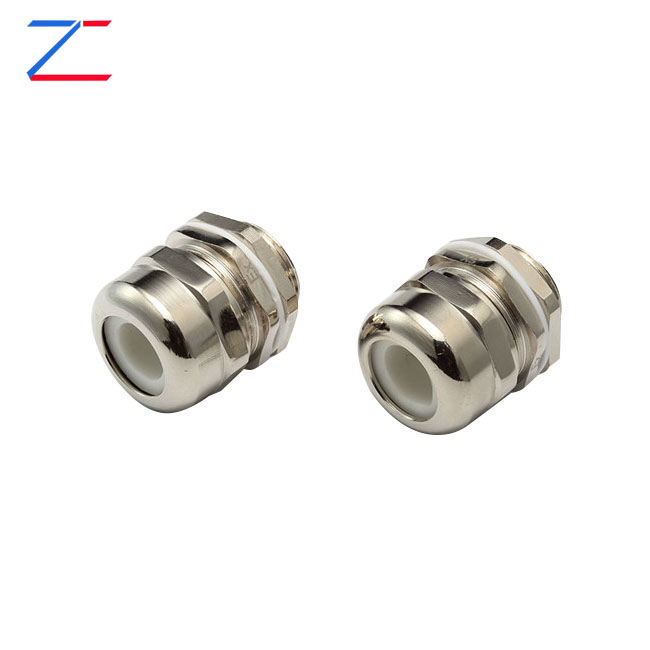

Image of this Heat-resistant cable gland
